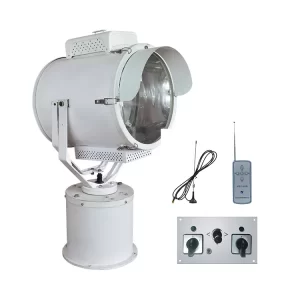

S.S. Remote Control Xenon Halogen 100-230V 2000-3000W Marine Searchlight | TZ2-A TZ3-A TZ4-A

Item No.: TZ2-A / TZ3-A / TZ4-A
Application: For night navigation, rescue, warning and other long-distance search;
Certification: ABS / CCS
Patent:  ZL 2014 2 0804513.3  /  ZL 2015 2 0410378.9
ZL 2015 2 0410358.1  /  ZL 2015 2 0410386.3
Material:  Stainless Steel + Tempered Glass
Protection Class:  IP55      Cable: Φ10- Φ16
Range:  Horizontally 350°，up and down ±30°

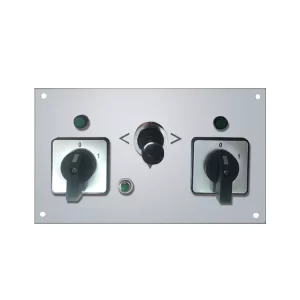

Annex: With Controller and Ballest
Szie: Φ521 x W415 x H1110mm

Dimension


  Feature

◆ Equipped with spherical tempered glass reflector and focal length adjusting device, which can flexibly adjust the focal length up and down, back and forth, with high brightness and long search distance;
◆ There is micro motor in the bottom, which can rotate the lamp body horizontally by 350° horizontally and pitch 30°;

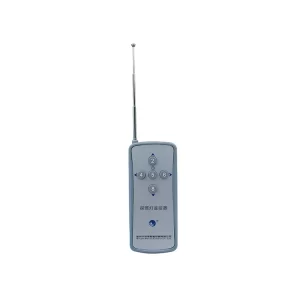

◆ The remote control focusing function is added, and the rotation speed is set to switch between fast and slow, which is convenient to accurately irradiate the target
◆ Two exhaust systems are installed to effectively reduce the lamp body temperature.

  Selection


 Type Voltage Power Lanp Holder Illuminant Luminous flux Annex Weight
 TZ2-A DC110V  AC220V 2,000W Special Sphericity mercury xenon light 120,000 Controller & Ballast 96 KGS
 TZ3-A DC110V  AC220V 3,000W G38 Tungsten halogen light 52,800 Controller & Ballast 78 KGS
 TZ4-A DC110V  AC220V 3,000W Special Sphericity mercury xenon light 180,000 Controller & Ballast 98 KGS


* Remarks - When under voltage DC110V, a distributor box is nececessary, please indicate when ordering.
